Offshore CAD Support

Offshore CAD Support

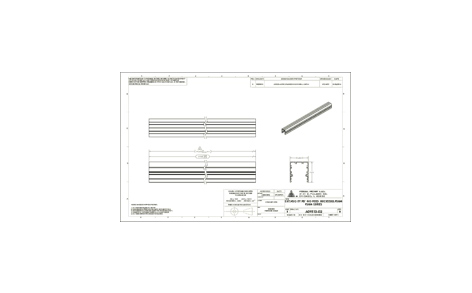

  • Large number of variants of aluminum extrusions were to be created in the increments of 1 inches as Solid Works configurations (More than 100 drawings / day)
  • Mounting holes on these extrusions were required to be adjusted in various extrusion lengths as per number of holes required.
  • Here center distance from edge to first & last hole should be in inch fractions. A solution was required to cope up with quick turnaround considering these hole adjustments.

Download Case Study
