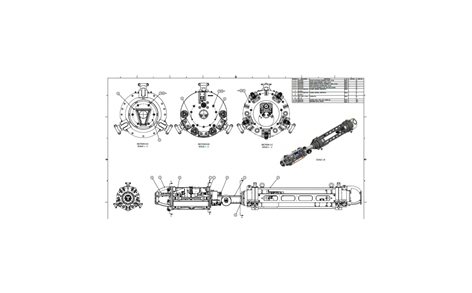

Internal Welding Machine – SPM

Internal Welding Machine - SPM
  • Scope of this project is to design Internal Welding Machine to join two pipes – diameter to diameter
  • IWM Suitable to weld pipe IDs ranging from 14” to 16” with infinite steps
  • IWM to have 2 welding torches that should have real time actuation in 3 directions (Torch tilting, Torch radial in & out, Torch oscillation at high speed along pipe axis)
