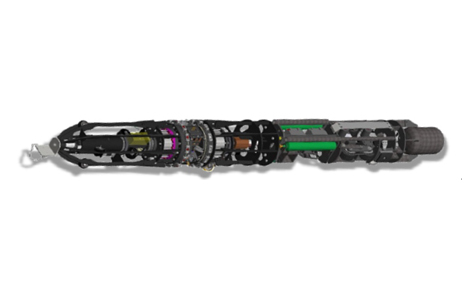

Internal Welding Machine – SPM (2)

Internal Welding Machine - SPM (2)
  • Scope of this project is to design Internal Welding Machine to join two pipes – diameter to diameter
  • IWM Suitable to weld pipe IDs ranging from 24” to 28” with infinite steps
  • IWM to have 3 welding torches that should have real time actuation in 3 directions (Torch tilting, Torch radial in & out, Torch oscillation at high speed along pipe axis)
